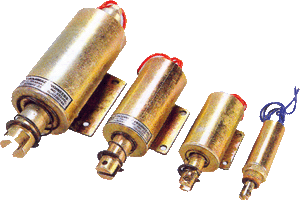

Electromagnetic Push Pull
DC Solenoids
|
SALIENT FEATURES
For Linear Push Pull Opertions.
Fast Actuation.
With bracket for easy mounting.
Available in continuous half & quarter duty cycle.
Three force level for one size.
Suitable for high frequency operation.
No risk of coil burnout.
Long life.
Replaces costly Pneumatic & hydraulic,
equipments used for linear operations.
Compact & cost effective solution.
|
 |
Series 'L' Electromagnetic Clutch / Brake Combination -
Enclosed Version Type -
EN
|
SALIENT DESIGN FEATURES
Ready to use factory fitted & Aligned
Simple installation.
Completely enclosed.
Aluminium body for good heat dissipation & light weight,
Wear Resistant & Temperature stable friction linning.
Specially processed Armature for durability.
Low maintainance, long life.
Slotted Armature for torque stability.
High Operating frequency.
|
 |
|
|
Series 'W'
Electromagnetic Tension Brake / Clutch
These are used to
control the Tension during winding, spooling and unspooling kind of
applications.
The tension can be controlled by varying the voltage applied to the brake or
clutch.
SALIENT DESIGN FEATURES
VERSATILE
Can be mounted in any position, simple installations.
DURABLE High torque, durable & temperature stable friction lining. Friction
lining specially designed to work with continuous slippage. Specially processed
Heavy Duty Armature plate for wear resistance with Special Aluminium Heat Sink
Built into the Armature Plate. Heavier, thick walled construction to ensure long
life. Low maintenance.
STABLE
Epoxy resin bonded vibration proof coil. Slotted Armature for greater torque
stability. Pre-loaded armature spring for residual torque free release.
FAST
High operating frequency, low inertia, fast & uniform response time.
Economical
Low cost and very economical, when compared with costlier magnetic particle
brakes. Simple Power Supply unit, with provision to manually vary the supply
voltage, available.
|
 |
|
|
|
Series ‘EK’
Electromagnetic Wet / Dry Type Multi Plate and Toothed Type Clutches and
Brakes
SALIENT DESIGN FEATURES
VERSATILE
Direct replacement for popular ‘Siemens’ make and ‘Stromag’ Make Multi Plate
clutches and Brakes.
QUALITY
Excellent quality with electrical connection through Slip-Ring or Stationary
Filed Coils
INSTALLATION
Easy Installation, with direct replacement for Any Foreign
or Indian make
DURABLE
Long life, with specially treated plates for low wear, with Accurate
machining, done with Laser Cutting Machines
STABLE
Epoxy resin bonded vibration proof coil. Preloaded plates from high quality
spring steel
ECONOMICAL
Very economically priced, with amongst the lowest prices available.
|
 |
|
|
OUR OTHER PRODUCTS
1. 'Maxitorq' D. C. Power Supplies : Transformer Rectifier sets to suit any of
our Clutches,
Brakes & solenoids.
2. 'Maxitorq' High Speed Clutch / Brake controller : It allows faster
Activation / Deactivation of
Clutch / Brake for very high frequency & better
accuracy operations.
3. Custom designed clutch & Brake : Including very high torque clutches,
permanent magnet fail safe
brakes & clutches, slip ring clutches etc. as
per customers applications.
4. Series EK electromagnetic wet type and dry type multi plate and toothed
clutches and brakes"
Product improvement is a continuous process at Modimaz.
The equipment supplied, therefore may not exactly conform to the descriptions /
illustrations contained in this catalogue.
|
|
|
