Electromagnetic Clutch, Bearing Mounted and Flange Mounted, Mumbai, India

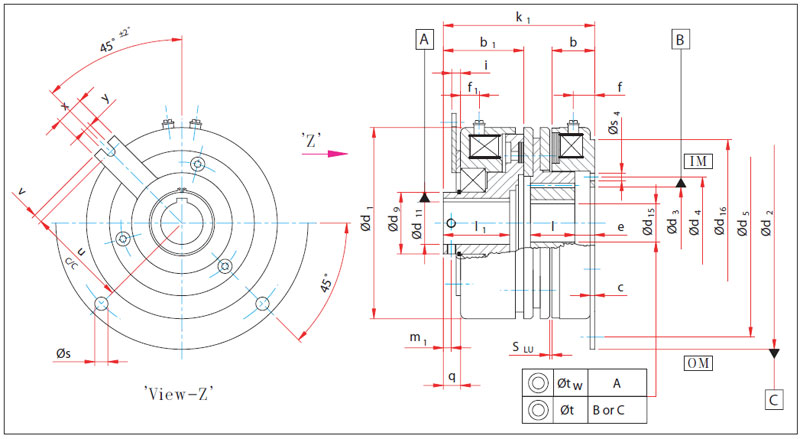

Type- C & B ( Dimentional Drawing )

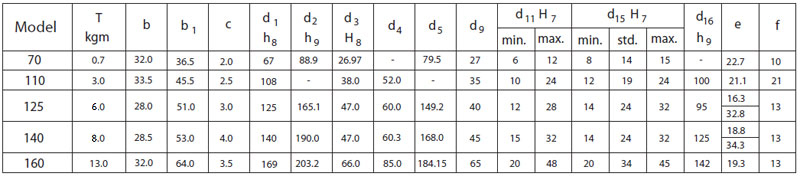

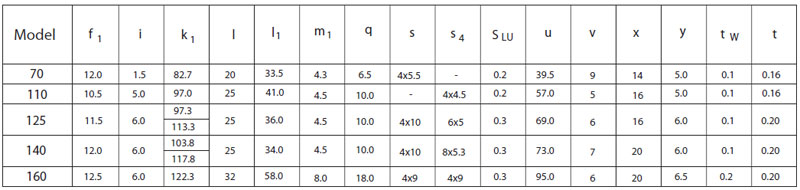

Dimensions in mm.
Keyway to IS : 2048.
Recommended ISO shaft tolerance.
up to Ø50 mm: k6
larger than Ø50 mm: m6
Standard voltage : 24V. D.C. Other voltage on request.
1Kgm = 9.804Nm = 7.225lb.ft.
