Electromagnetic Clutch, Bearing Mounted and Flange Mounted, Mumbai, India

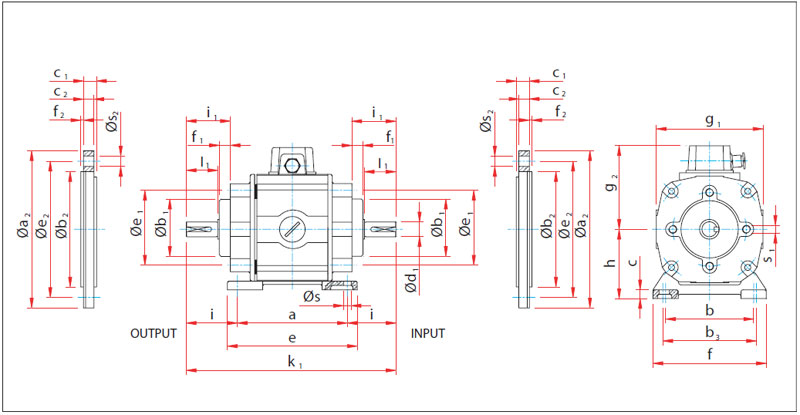

Type - EN ( Dimentional Drawing )

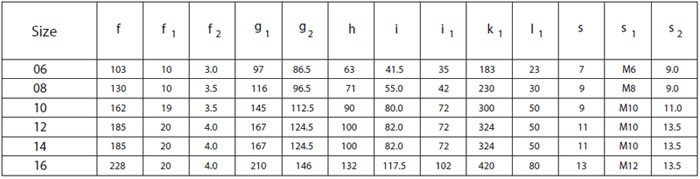

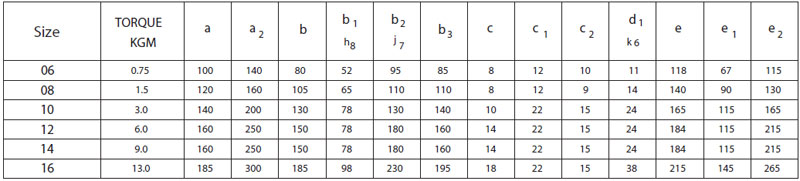

Dimensions in mm.
Keys to IS : 2048.
• Standard voltage : 24V. D.C. Other voltage on request.
• 1Kgm = 9.804Nm = 7.225lb.ft.
• Input/Output B5 flange on request.

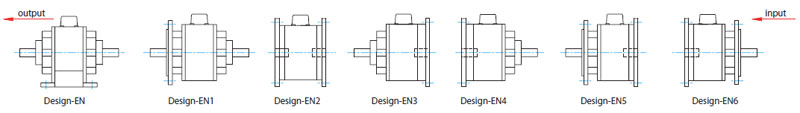

Flange Mounted Configurations Available.
