Electromagnetic Brake

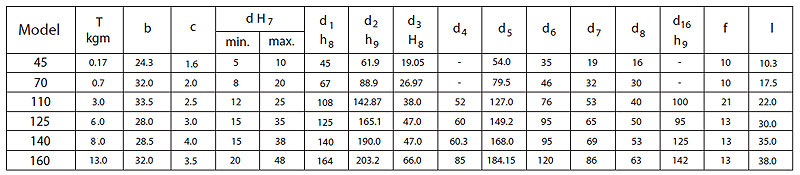

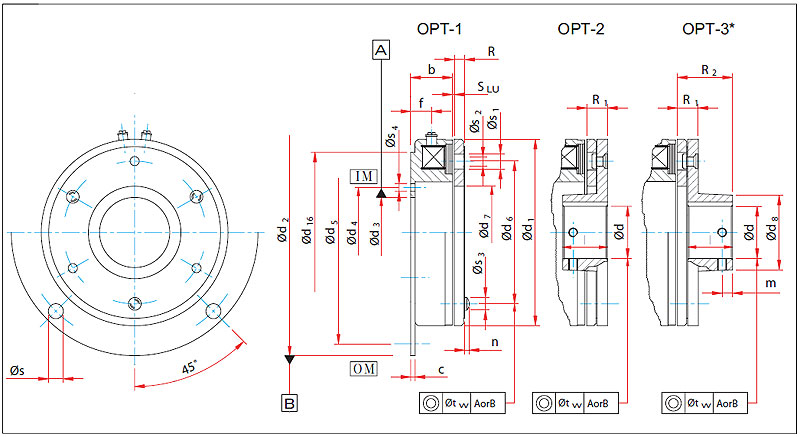

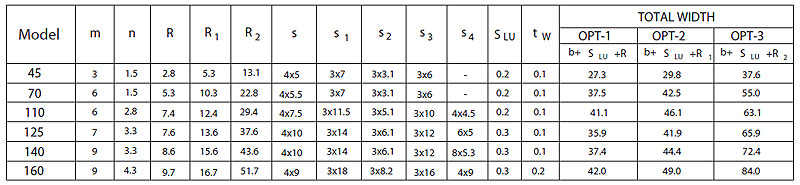

Type- B (Dimensional Drawing)
- • Dimensions in mm.
- • Keyway to IS : 2048.
- • Recommended ISO shaft tolerance.
- • Up to Ø50 mm: k6
- • Larger than Ø50 mm: m6
- • Standard voltage : 24V. D.C. Other voltage on request.
- • 1Kgm = 9.804Nm = 7.225lb.ft.
- • OPT-3 - Comes in two differnt design.
- • 3.1 - With Zero Backlash Spring Design.
- • 3.2 - With Pin Drive Design.
