Electromagnetic Brake

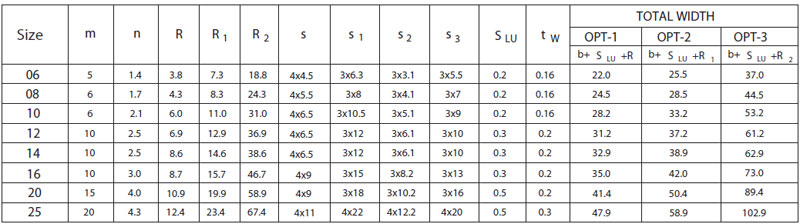

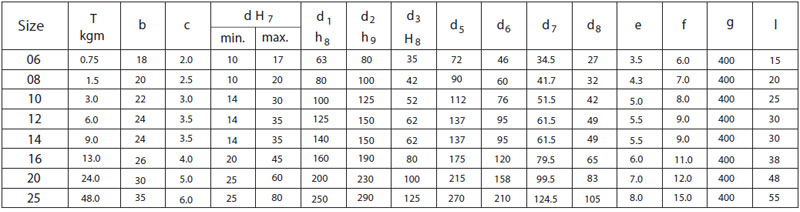

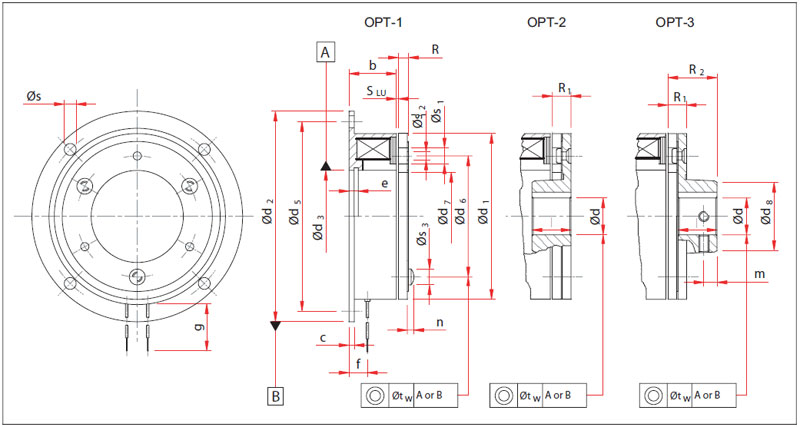

Type SZB (Dimensional Drawing)
Home
Products
• Dimensions in mm.
• Keyway to IS : 2048.
• Recommended ISO shaft tolerance.
• Up to Ø50 mm: k6
• Larger than Ø50 mm: m6
• Standard voltage 24V. D.C. Other voltage on request.
• 1Kgm = 9.804Nm = 7.225lb.ft.
