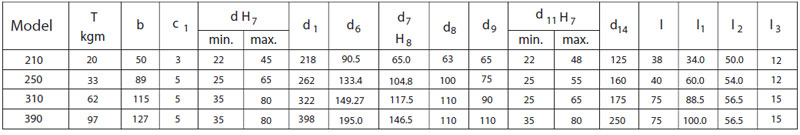

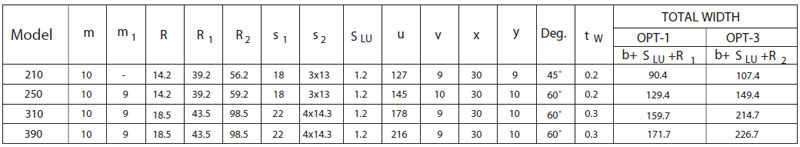

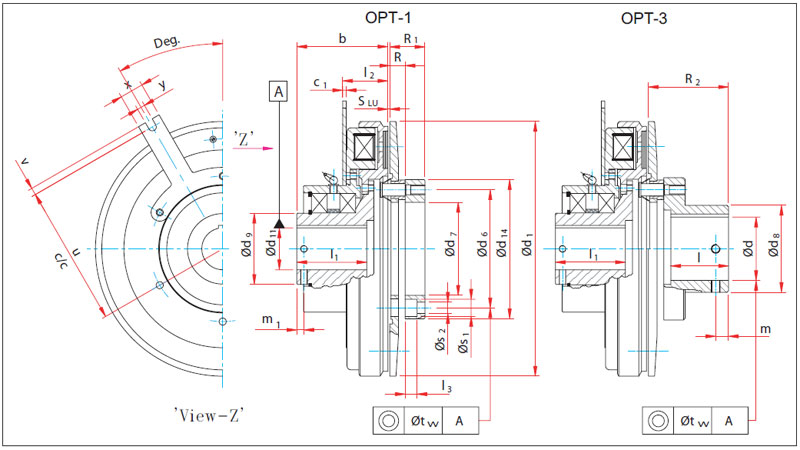

• • Dimensions in mm.
• • Keyway to IS : 2048.
• • Recommended ISO shaft tolerance.
• • Up to Ø50 mm: k6
• • larger than Ø50 mm: m6
• • Standard voltage : 24V. D.C. Other voltage on request.
• • 1Kgm = 9.804Nm = 7.225lb.ft.
• • NOTE :- Model : BM-210 & 250 :- With single ball bearing.
• • Model : BM-310 & 390 :- With double ball bearing.
• • ALSO AVAILABLE
• • ON REQUEST : BM 425 :- 150 Kgm BM 500 :- 200 Kgm
